What is an Atomic Watch?
Atomic watches are not atomic clocks themselves but are timepieces capable of receiving time calibration signals from external atomic clocks. Atomic clocks are based on the oscillations of atoms—typically cesium-133 or rubidium-87—as a reference for timekeeping. A traditional atomic clock measures the electromagnetic transitions in atoms with extreme accuracy.
For example:
- Cesium-133 Atomic Clock: Defines the SI second as 9,192,631,770 transitions of the cesium atom.
- Rubidium Clocks: While slightly less accurate than cesium clocks, they are smaller and more power-efficient, making them ideal for GPS satellites.
Atomic watches receive time signals from these reference clocks through various synchronization technologies. In essence, atomic watches bridge the gap between lab-grade precision and wearable convenience by combining miniaturized radio/GPS hardware with clever software that continually adjusts timekeeping.
They utilize embedded quartz oscillators for daily operations and periodically synchronize with authoritative sources to correct any drift. This synchronization process ensures reliable and traceable time for a wide variety of use cases: navigation, sports, scientific work, aviation, military coordination, and even aesthetics.
Synchronization Methods: Overview
There are three major synchronization mechanisms for atomic watches:
- Low-Frequency Radio Signal Reception
- Global Positioning System (GPS) Signal Reception
- Network Time Protocol (NTP) Over Internet
Each of these systems involves different hardware, antennas, signal processing units, and software algorithms to decode the signals and update the time. While all aim to achieve the same goal—accurate timekeeping—they cater to different use cases, environments, and technological ecosystems.
Real-World Importance
Accurate time isn't just a luxury. Industries such as finance, aviation, telecommunication, and scientific research all depend on precise timing. High-frequency trading, for instance, depends on accurate timestamps for each transaction. A discrepancy of even milliseconds can mean millions in profit or loss. Atomic-synced watches provide users with the confidence that they are operating with the most accurate time available.
Radio-Controlled Atomic Watches (LF/MSF Synchronization)
Technical Details

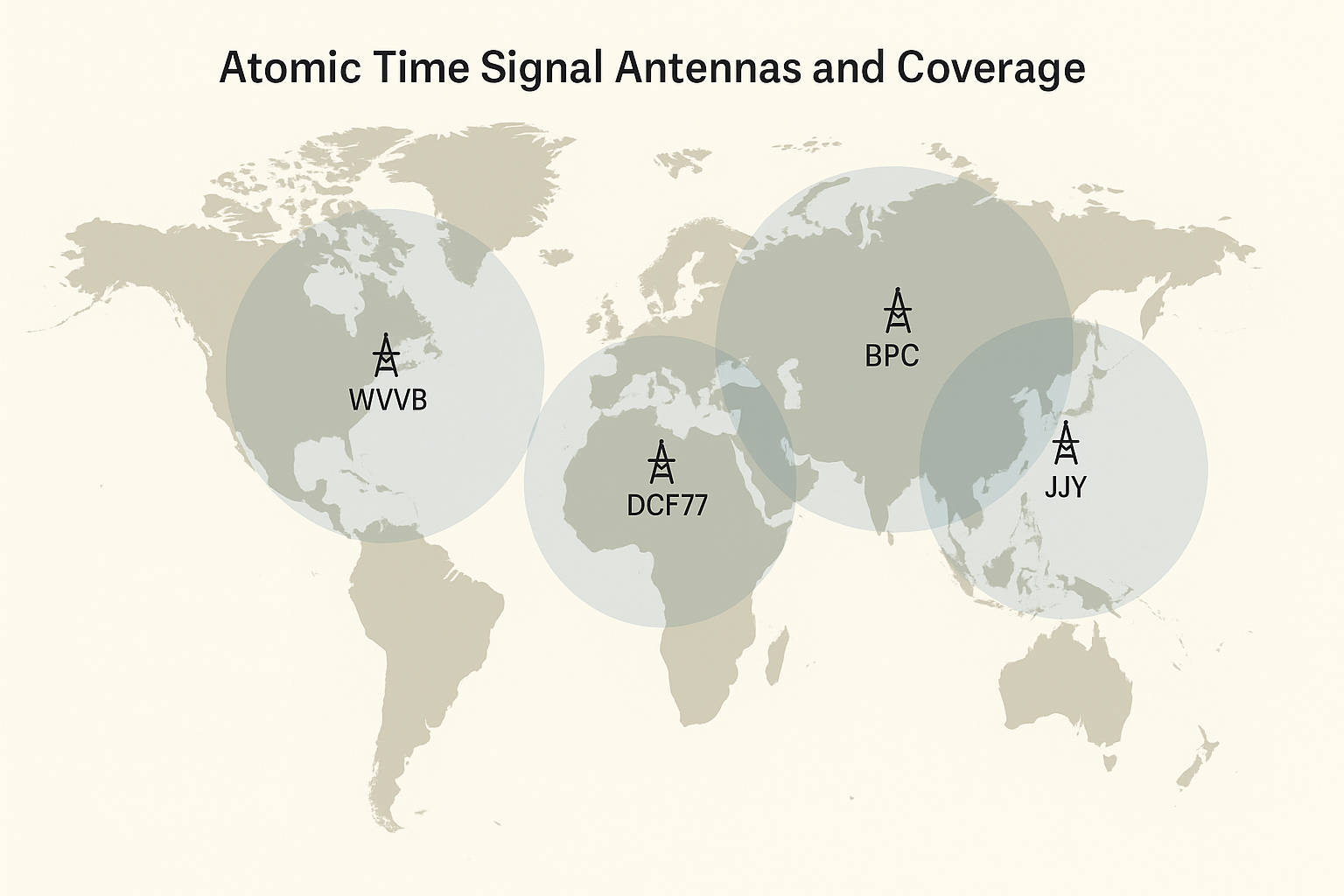

These watches contain a miniature radio receiver tuned to specific low-frequency time signals (typically between 40 kHz and 77.5 kHz). The most well-known transmitters include:
- WWVB (USA, 60 kHz) – Fort Collins, Colorado
- DCF77 (Germany, 77.5 kHz) – Mainflingen
- MSF (UK, 60 kHz) – Anthorn
- JJY (Japan, 40/60 kHz) – Mount Otakadoya and Hagane
- BPC (China, 68.5 kHz) – Shangqiu
- TDF (France, 162 kHz) – Allouis (historical use)
Each transmitter is synchronized with a national atomic clock. The modulation technique used is typically Amplitude-Shift Keying (ASK) or Phase-Shift Keying (PSK).
Signal Structure
Signals typically carry information like:
- UTC Time (hours, minutes, seconds)
- Date (day, month, year)
- Daylight Saving Time indicators
- Leap second adjustments
The bitstream is transmitted once per minute, and the watch decodes this structure to apply updates. Signal reception usually occurs automatically at night, when radio interference is lower and atmospheric conditions help signal propagation.
Hardware Considerations
- Ferrite Rod Antenna: Directional and tuned to low-frequency range.
- Low-Noise Amplifier (LNA): Boosts weak signals for processing.
- MCU (Microcontroller Unit): Handles signal decoding and controls time display.
Modern implementations may include adaptive filtering to reduce multipath interference and temperature compensation to improve signal stability. Smart synchronization algorithms may perform retries, assess signal quality, or adapt to local daylight saving rules.
Limitations
- Poor indoor reception
- Limited to regions covered by transmitters
- Susceptible to electromagnetic interference from electronics or urban environments
Despite these limitations, radio-controlled watches are popular for their low power consumption and automatic daily syncing. They remain a staple in the collections of brands like Casio and Citizen.
GPS Atomic Watches
GPS Clock Fundamentals
GPS satellites each contain rubidium or cesium atomic clocks. These satellites broadcast time-coded signals that include data required for both positioning and time synchronization. A GPS-enabled watch can extract extremely accurate time from these transmissions.
Technical Stack
- Frequency Band: L1 (1575.42 MHz)
- Modulation: Binary Phase Shift Keying (BPSK)
- Components:
- GPS RF Front End
- Baseband Signal Processor
- Real-Time Clock
- Host MCU with UTC Conversion Logic
Signal Processing Flow
- Signal Acquisition: Cross-correlation with known PRN codes
- Carrier and Code Tracking: Maintains phase lock
- Navigation Message Decoding: Extracts precise time
- UTC Computation: Applies corrections for relativity, leap seconds, and GPS-to-UTC offset
Pros and Cons
- Pros:
- Global coverage
- High accuracy
- Time + location awareness
- Cons:
- Higher power draw
- Larger antennas
- Longer acquisition time
Most GPS watches update once per day, and many support manual syncs on user request. Some also use dual-frequency reception (L1/L5) for faster fix times. GPS syncing is especially useful for travelers, pilots, and professionals who frequently move across time zones.
Internet Time Synchronization (Smart Atomic Watches)
NTP Protocol
NTP is a robust protocol used to synchronize clocks across packet-switched networks. It operates by minimizing the round-trip time between the client (watch) and the NTP server.
- Packet Format: 48 bytes, includes timestamps for request and response.
- Server Hierarchy:
- Stratum 0: Atomic clocks, GPS clocks
- Stratum 1: Servers connected to stratum 0
- Stratum 2+: Standard internet servers
Process Flow
- Watch initiates a time sync via UDP port 123.
- Server responds with four timestamps.
- Watch calculates offset and delay.
- Time correction is applied based on median filters or statistical smoothing.
Advantages
- Works anywhere with internet
- Time updates can occur invisibly in the background
- Lightweight and highly scalable
Watches using NTP often leverage operating system services (e.g., Android SNTP stack), which abstract most complexity. Smartwatches such as the Apple Watch, Garmin Fenix, and Samsung Galaxy Watch use internet-based sync to ensure time accuracy.
Cloud Sync and Companion Apps
Modern smartwatches may rely on companion smartphone apps that perform NTP sync in the background and push accurate time to the wearable via Bluetooth. This offloads processing and reduces power draw on the watch. Cloud-connected time sync also allows for remote configuration, time zone rule updates, and sync history logging.
Synchronization Accuracy and Quartz Calibration
Quartz oscillators provide high-frequency signals based on piezoelectric effects. However, they drift due to temperature and aging.
- Standard Quartz: ±15 seconds/month
- Thermocompensated Quartz (TCXO): ±5 seconds/year
Calibration Techniques
Some atomic watches apply statistical correction algorithms to the quartz oscillator:
- Measure deviation over time vs. atomic sync
- Store calibration coefficients
- Apply predictive drift compensation
Such calibration ensures sub-second accuracy even between synchronization cycles. Citizen's high-end models can maintain accuracy within ±1 second per year by combining solar power and quartz correction with GPS or radio sync.
Power Management in Atomic Watches
Low-power operation is essential for synchronization technologies:
- Scheduled Sync: Once daily or at optimal times
- Watchdog Timers: Prevent continuous scanning
- Solar Charging: Common in GPS-enabled watches
Casio and Citizen use solar panels integrated into the dial, storing energy in rechargeable cells. Smart algorithms defer synchronization if battery is low or reception is suboptimal.
Battery Technology
Rechargeable lithium-ion cells are common in smartwatches, while supercapacitors or thin-film batteries may be used in specialized low-power models. Some watches can last several months or years on a single charge due to optimized firmware and sync intervals.
Manufacturers and Notable Models
- Casio G-Shock Multiband 6: Radio-controlled, solar-powered, 6 transmitters
- Citizen Satellite Wave GPS: GPS + Eco-Drive, advanced UTC offset handling
- Seiko Astron GPS Solar: High precision, multi-timezone, automatic DST
- Garmin Fenix Series: Smartwatch sync with internet and GPS time sources
- Apple Watch / Samsung Galaxy Watch: NTP sync via smartphone
These models represent the pinnacle of integration between rugged design, advanced materials, and precise timing.
The Future of Atomic Synchronization
Miniaturization
Advances in MEMS (Micro-Electro-Mechanical Systems) may allow embedded atomic oscillators in wristwatches. Chip-scale atomic clocks (CSACs) are already used in military and scientific equipment and may shrink enough for consumer-grade watches in the next decade.
Wireless Protocols
Bluetooth LE, 5G, and Ultra-Wideband (UWB) could be leveraged for time sync via nearby atomic clocks, smart infrastructure, or even crowdsourced networks. For instance, 5G base stations already maintain precise timing and could be used as sync anchors.
AI-Enhanced Syncing
Machine learning could optimize sync schedules by predicting environmental factors (location, RF noise, user activity) for better power and accuracy. AI could also identify sync anomalies, auto-correct missed updates, and adapt to new DST rules instantly.
Environmental Adaptability
Future watches may include environmental sensors (e.g., barometers, magnetometers, RF analyzers) to determine ideal times and conditions for sync. This would improve reliability in difficult environments like mountains, deep urban zones, or during flight.
Conclusion
Synchronization with atomic clocks is one of the greatest advances in horology. Whether through radio waves, GPS satellites, or the internet, atomic watches ensure that we stay in sync with the most precise clocks ever created. With ongoing improvements in antennas, signal processing.
